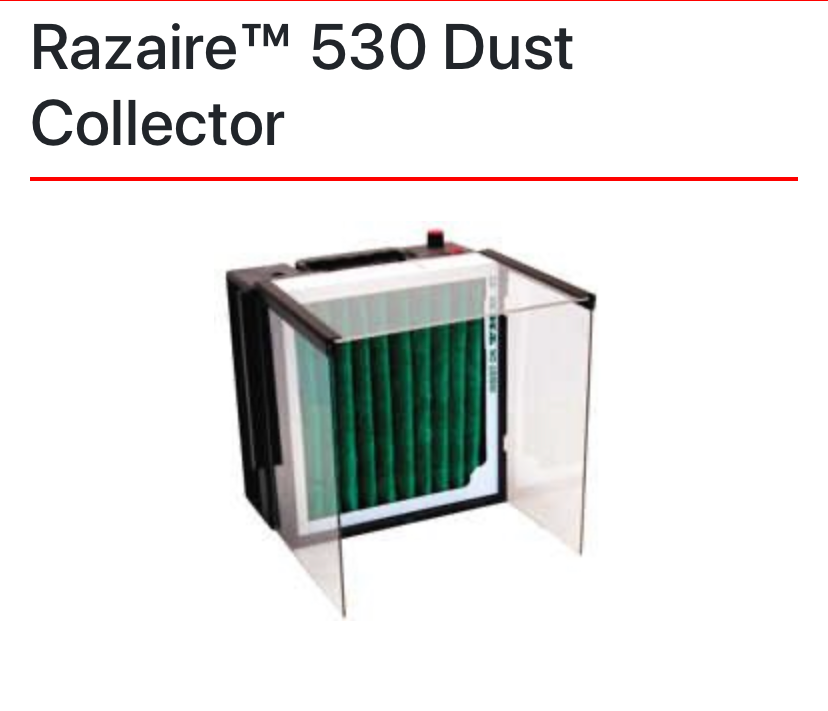

The Razaire 530 is the smallest, quietest, most powerful and versatile portable dust collector in the world. Because it is a modular system, it can handle the dust control needs of any small home workshop - from collecting dust at the source (rotary carving tools, belt sanders, etc.) to overall shop air filtration.
This works wonderfully to pull egg dust out of your workspace. Use the white high efficiency and green filter that comes with the machine or add a charcoal filter with the 2” filter adapter for a safe user experience.
How does it work?
Basically, dusty air enters the front of the unit, drawn in by a powerful impeller fan. The dust is trapped by a filter that removes over 90% of 3-4 micron sized particles (about the size of baby powder). Clean air is then exhausted out the side. For most carving or egging applications, it is not necessary to work inside the acrylic hood – working 6″ in front of it usually provides satisfactory results. With enough suction to pick up shavings from a planer (with a 4″ hose attached), the Razaire 530 can handle it all. The supplied standard 2″ filter is easily removed for cleaning (filter is cleaned by tapping it into a plastic bag or a garbage can). It can be cleaned many times before replacement is necessary. The Flameproof ABS cabinet has a built-in lamp holder that accepts a standard swing-arm lamp (not included), giving you excellent light where you need it most – right at the intake. Also supplied with an 8″ acrylic hood that breaks down into 3 flat panels for portability. Razaire 530 Dust Collector

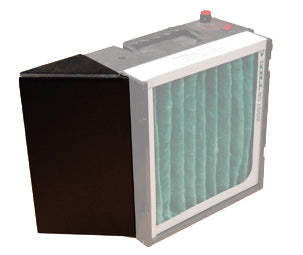

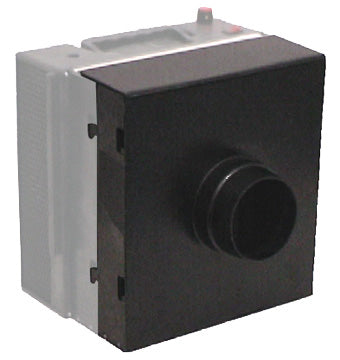

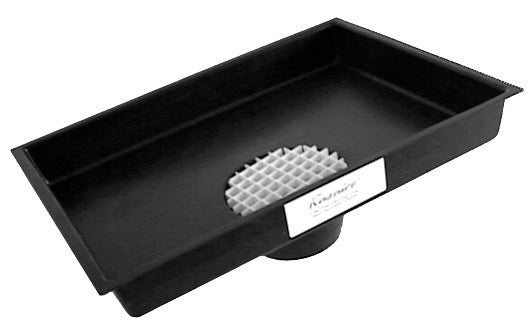

Several accessories can be added to increase the versatility of this system – everything from adding higher efficiency filters or extra filter stages (for increased efficiency) to a 4″ hose adapter, a lap-top tray, a motor tool hanger, and a deflector to direct the air towards the back.
Weight: 3.3kg / 7.25lb. (with standard 2″ filter installed).
Construction: Structurally foamed flame retardant ABS plastic, certified CSA A000 flameproof.
Fan: Variable speed high performance impeller type fan 530 CFM free air, 400 CFM @ .4″ static pressure.
Electrical ratings: 120VAC, 60Hz, .67A 100watts.
Standard Filter: 9.75″ x10.5″ x 2″ pleated filter rated 30% efficient w/1 micron particle.
Safety Certification: CSA NRTL /C certified (file LR95555-4) for North America.
Warranty: 5 years on the impeller (fan), 10 years on all other parts of the power unit.
Other standard features:
Easy to use Quiet, powerful operation
Built-in lamp holder Variable speed fan
Built-in carrying handle Side air discharge
Built to last One-year unconditional warranty
